High-End Woodworking Machinery

Our Bala Vertical Panel Saw Line Up

DPM AV 2242

AUTOMATIC VERTICAL PANEL SAW

Click below to go to DPM AV 2242 Page

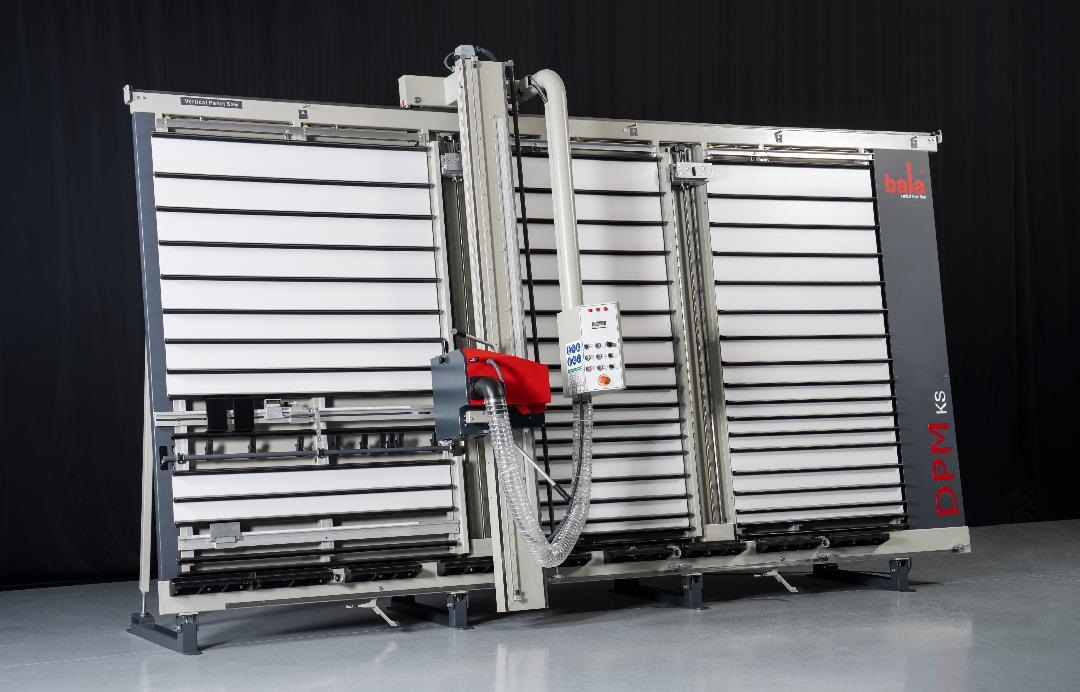

DPM-KS Vertical Panel Saw With Clamps to Hold Material & DPM-ED WITHOUT CLAMPS

                                    1.  DPM AV 2242 AUTOMATIC VERTICAL PANEL SAW WITH CLAMPS                       *$79,500

                                              2.  DPM KS MANUAL VERTICAL PANEL SAW WITH CLAMPS                                      *$39,500

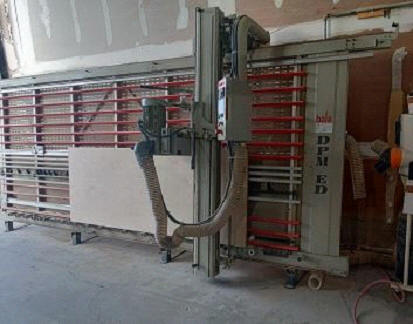

                                                  3.  DPM ED MANUAL VERTICAL PANEL SAW WITHOUT CLAMPS                              *$27,800

*Plus U.S. or Canadian or Mexico delivery and installation

See Video Below



DPM-KS Video











*Plus U.S. or Canadian or Mexico delivery and installation



See Video Below



  DPME-21-41 Videos below





• Divide up sheets  6 or 7 feet tall (depending on model) and over 13 feet long
• Your operator can turn full sheets of melamine, solid surface, plywood, plexiglass or Aluminum Composite Material into precise, square, and dimentiaonally accurate chip free parts in a matter of minutes
• Comes with scoring blade to achieve chip free cuts on melamine, laminate and veneers
• Fits tightly near a wall in your shop to minimize  space requirements
• Cuts operator fatigue and increases production as machine cuts both directions, vertical and horizontal while sheet stays stationary during cut, head or gangry moves
• Dramatically increases precision and production while at the same time lowering labor cost







                                                                                                               DPM-KS Specs

DPM-KS Vertical Panel Saw Specifications

-  Automatic lock system

-  Semi-automatic lifting system

-  Motor power, 4 HP

-  Electric power consumption, 3 kw

-  Rotation, 3000 rpm

-  Main blade rotation, 5800

-  Scoring blade rotation 7800

-  Vertical cutting height 2135 mm (84")

-  Horizontal cutting length  5100 mm

-  Cutting blade size  250 mm x 30 mm x 3.2 mm  z80 trapeze

-  Drawing blade size 80 mm x 20 mm x 2.8 mm  z10/10

-  Dimensions shipping  6300 mm x 2100 mm x 1400 mm

-  Bottom supports, metal wheel

-  Movable supports, automatic



DPME-21-41 Specs

Processing sheets both horizontally and vertically

-  Standard cutting height is 2000mm  (78")  Other cutting heights available

-  Cutting length is 4100mm  (161")

-  Thickness of cut is 0-42mm (0-1 5/8") 60mm without scoring blade (2 5/16")

-  Comes with main blade and scoring blade

-  Motor hp is 4.0  (3 kw) three phase

-  Moveable front panel supports.  (Pneumatic automatic movement up and down using sensor system)

-  Bottom supports are metal wheels

Financing Available With Approved Credit
