Paoloni
| TECHNICAL DATA | P3200NX | P3200SX | P3200AX | |
|---|---|---|---|---|
 |
||||
| SAW | ||||
 |
||||
| FIXED TABLE DIMENSIONS / HEIGHT | mm | 1150 x 680 / 870 | 1150 x 680 / 870 | 1150 x 680 / 870 |
|
|
||||
| CARRIAGE DIMENSIONS / STROKE | mm | 3200 x 400 / 3500 | 3200 x 400 / 3500 | 3200 x 400 x 3500 |
|
|
||||
| CUTTING WIDTH | mm | 1300 | 1300 | 1300 |
|
|
||||
| MAX DIAM. SAW BLADE / HOLE | mm | 500 / 30 | 500 / 30 | 500 / 30 |
|
|
||||
| CUTTING HEIGHT AT 90°-45° | mm | 177 - 133 | 157 - 111 | 157 - 111 |
|
|
||||
| TILTING BLADES | ° | 0° - 45° | 0° - 45° | 0° - 45° |
|
|
||||
| g/min | 3000/3600/4200 | 3000/3600/4200 | 3000/3600/4200 | |
|
|
||||
| MOTOR POWER | KW | 7,5 | 7,5 | 7,5 |
|
|
||||
|
UPPER AND LOWER |
mm | 120 / 100 | 120 / 100 | 120 / 100 |
|
|
||||
|
|
||||
|
|
||||
| Ø BLADE - Ø HOLE, STANDARD SCORING SAW | mm | 125 - 20 | 125 - 20 | 125 - 20 |
|
|
||||
| Ø BLADE - Ø HOLE, POST FORMING SCORING SAW (optional) | mm | 230 - 20 | 230 - 20 | 230 - 20 |
|
|
||||
| SCORING//POST FORMING UNIT CUTTING HEIGHT | mm | 8 / 50 | 8 / 50 | 8 / 50 |
|
|
||||
| SHAFT SPEED STANDARD SCORER/POST FORMING SCORER | g/min | 7600 / 4400 | 7600 / 4400 | 7600 / 4400 |
|
|
||||
| MOTOR POWER STANDARD SCORER/POST FORMING SCORER | kW | 0,55 / 0,75 | 0,55 / 0,75 | 0,55 / 0,75 |
|
|
||||
| SOUND EMISSION ACCORDING TO ISO 7960 STANDARD-CUTTING WITH SAW | La eq [dB(A)] | 81,2 - 83,9 | 81,2 - 83,9 | 81,2 - 83,9 |
|
|
||||
| DUST EMISSION ACCORDING TO DIN 33893 STANDARD-CUTTING WITH SAW | mg/m3 | 0,87 | 0,87 | 0,87 |
|
|
||||
| NET WEIGHT | Kg | 1050 | 1080 | 1250 |
| O=ON REQUEST|X=STANDARD|\=NOT AVAILABLE | |||
|
|
|||
| NX | SX | AX | |
|
|
|||
| O | O | O | |
|
|
|||
| Motor driven carriage with variable speed | \ | \ | O |
|
|
|||
| Carriage 3800 mm long | O | O | O |
|
|
|||
| Post-forming scoring unit | O | O | O |
|
|
|||
| Extension table mm 400 | O | O | O |
|
|
|||
| Extra extension table | O | O | O |
|
|
|||
| Stops on fence indicated by magnetic band | O | O | X |
|
|
|||
| Saw blade motor with inverter | \ | O | O |
|
|
|||
| Pressure pad 3000 or 3600 mm long | O | O | O |
|
|
|||
| Controls
on carriage - automatic |
O | O | O |
|
|
|||
| Aligning laser device | O | O | O |
|
|
|||
| Cutting width on parallel fence mm 1100 or 1500 | O | O | O |
|
|
|||
| Cutting
|
\ | \ | O |
|
|
|||
| Automatic labelling machine on machine edge | \ | \ | O |
|
|
|||
| Saw fence controlled by programmer on control panel or mobile control panel | \ | O | X |
|
|
|||
| Three-axis programmer on control panel or mobile control panel | \ | O | X |
|
|
|||
| Scorer pneumatic exclusion | O | O | O |
|
|
|||
| Scoring off-set display | O | O | X |
|
|
|||
| 4-axis programmer on control console or on pendent | \ | O | O |
|
|
|||
| Programmer with 15" colour touch screen monitor | \ | \ | O |
|
|
|||

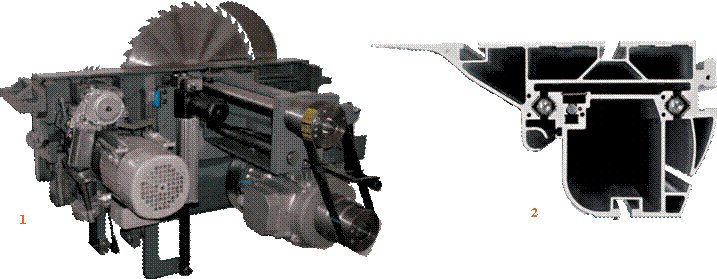

1 Sawing unit with long shaft
The sawing unit with a long shaft slides vertically along prismatic
guides. Stability and lack of vibration are ensured by the considerable
distance between the bearings of the long shaft. Power is transmitted
through a new PolyV-belt.
2 Excellent cutting finish and quality
The carriage sliding system, with large diameter bearings that roll
along hardened and ground prismatic tracks, together with mechanical
machining operations carried out on numerically controlled machines,
mean stability, no vibration, excellent sliding and straight cutting.
