Woodworking Machinery Imported from Europe and Asia

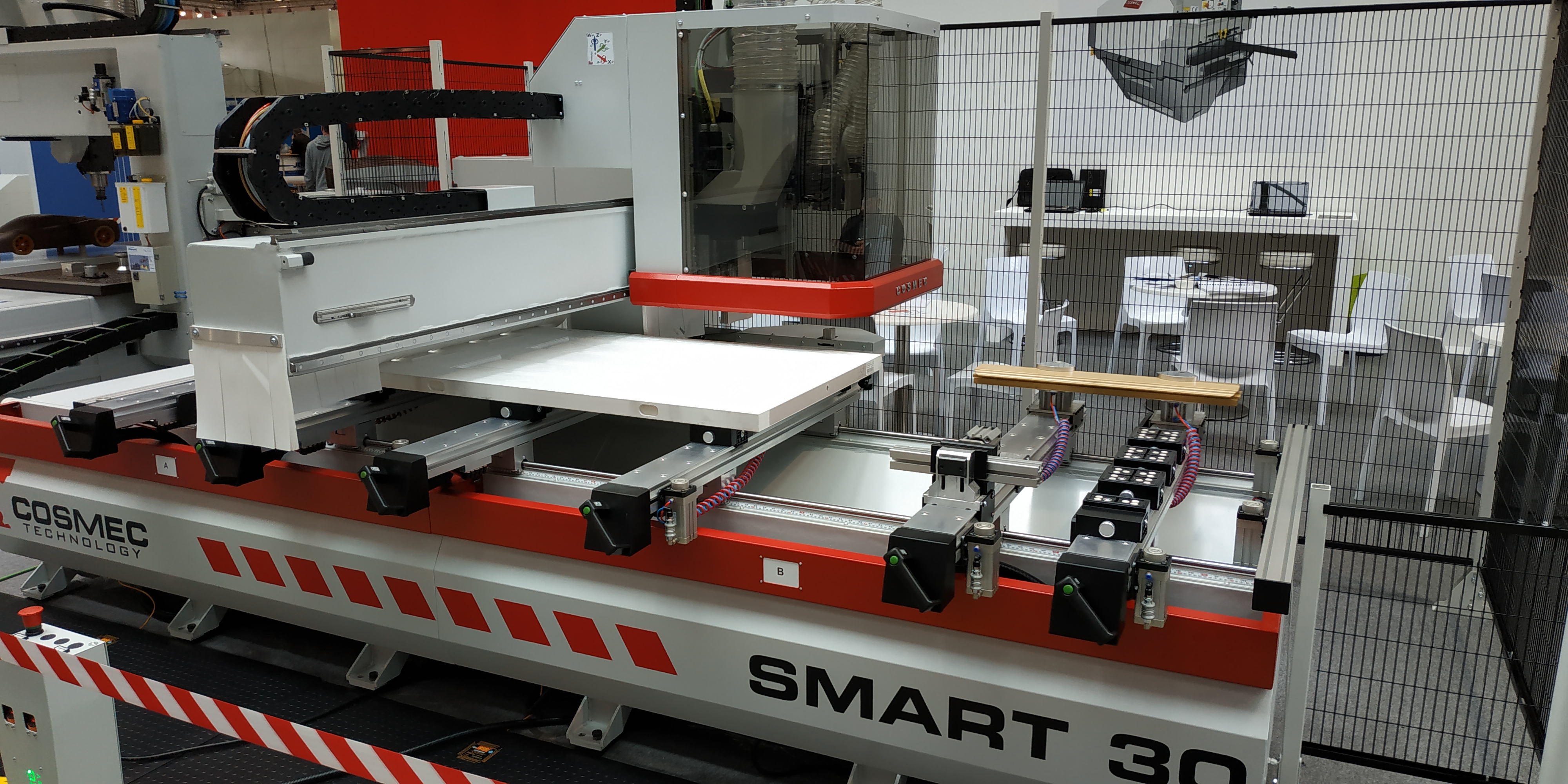

Cosmec (Made In Italy) Smart 30, 4' x 10' Pod and Rail CNC Machining Center

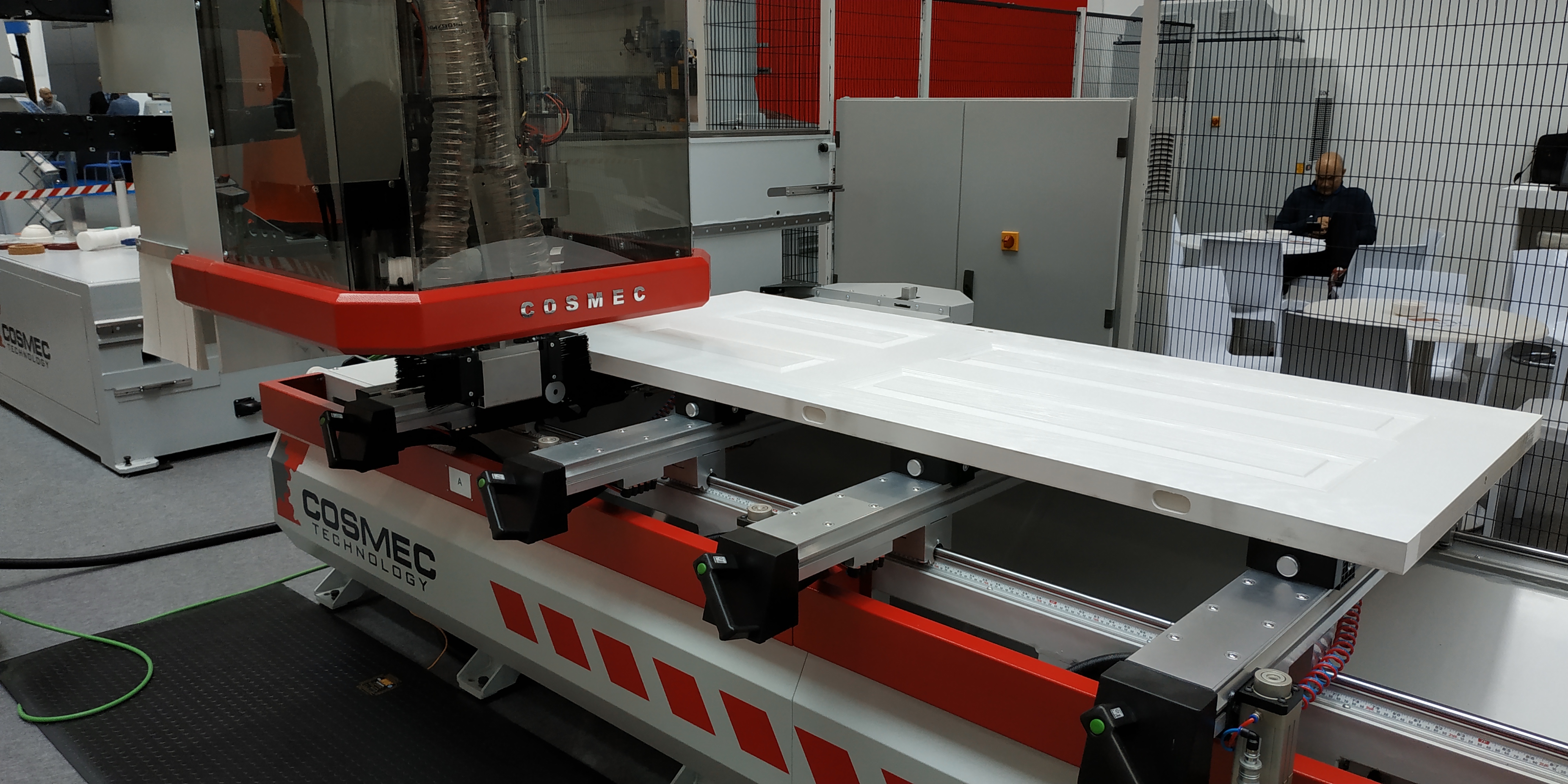

Perfect Machine for Casework, Countertops, Doors, and Architectural Millwork
SMART
3 AXIS Pods & Rails Table
Working table 3100 x 1350 mm
Router working area 3100 x 1500 mm
Piece passage 150 mm
Z = 430 mm
Working speed 90 m/minute
6 x bars 1300 mm length
18 x vacuum cups 120 x 120mm
16 x stops (2 left + 2 right + 6 rear + 6 front )
4 x supports for heavy panels
4 x working areas in pendular mode
4 x vacuum areas
3 axis electrospindle 12 kw HSK air cooled
10 positions rotary tool changer
Dust extraction bellow controlled by cn
Drilling unit with 10 verticals + 6 horizontals + saw in X
Horizontal group with 2 exits with 2,5 kw
1 x 100 m3/h vacuum pumps
Teleservice
Pc + ESA cn
Aspan SE cad/cam software
Automatic lubrification
Remote control
Safety mats + 3 side enclosures
Installation and instruction
Router working area 3100 x 1500 mm
Piece passage 150 mm
Z = 430 mm
Working speed 90 m/minute
6 x bars 1300 mm length
18 x vacuum cups 120 x 120mm
16 x stops (2 left + 2 right + 6 rear + 6 front )
4 x supports for heavy panels
4 x working areas in pendular mode
4 x vacuum areas
3 axis electrospindle 12 kw HSK air cooled
10 positions rotary tool changer
Dust extraction bellow controlled by cn
Drilling unit with 10 verticals + 6 horizontals + saw in X
Horizontal group with 2 exits with 2,5 kw
1 x 100 m3/h vacuum pumps
Teleservice
Pc + ESA cn
Aspan SE cad/cam software
Automatic lubrification
Remote control
Safety mats + 3 side enclosures
Installation and instruction
