AUTOMATIC VERTICAL PANEL SAW - DPM AV 2242

                                              Advanced Control Panel Saw with Optimized Cutting Software

Video of Machine in Operation below Image

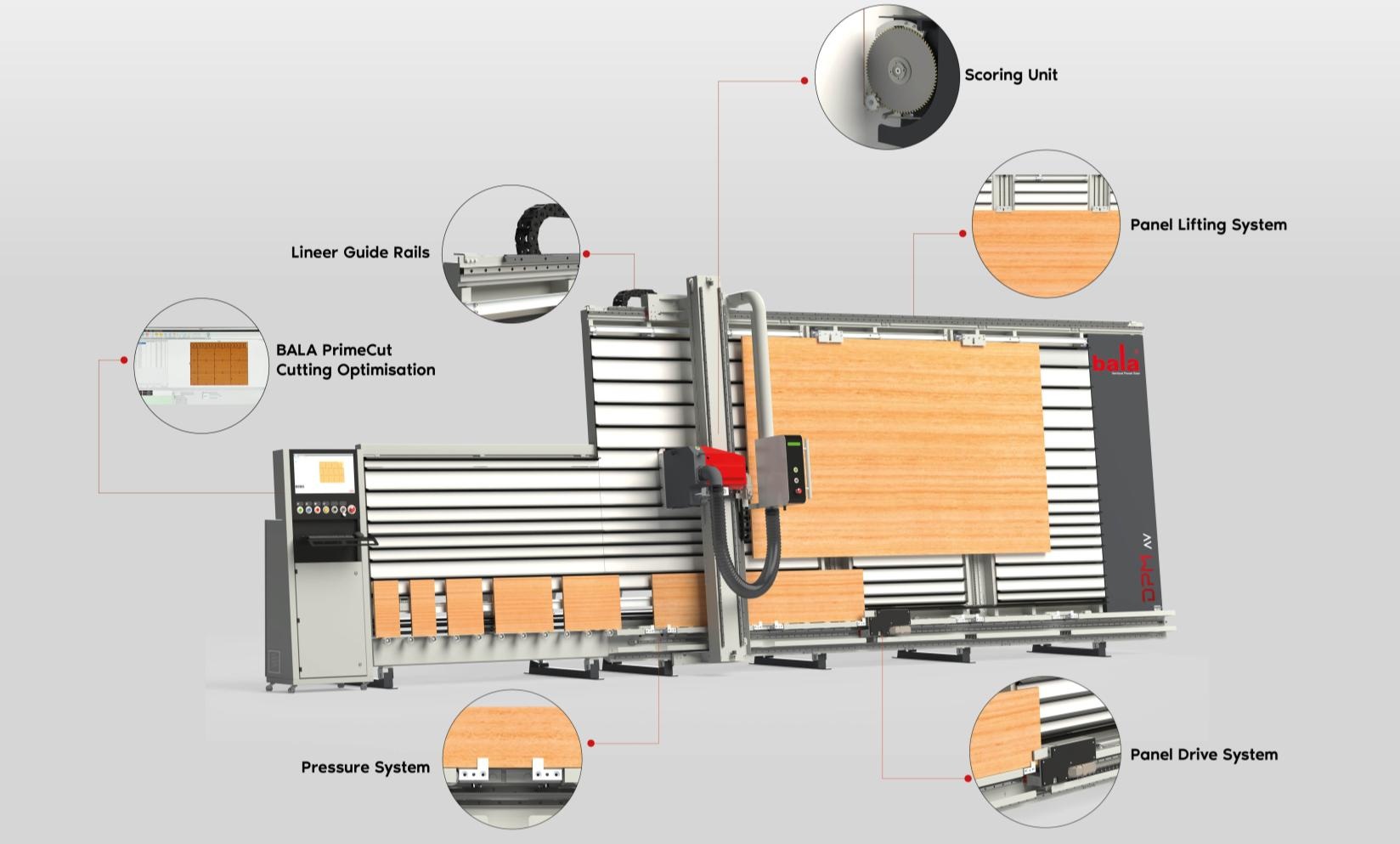

The  Bala DPM AV is a fully automatic vertical panel saw designed to optimize panel cuts with minimal effort.  Equipped with an advanced control panel, the machine ensures seamless and precise cutting operations through integrated software optimization

Key Features

  • Automatic Cutting Program-Optimizes panel cuts for maximum efficiency.

  • Automatic Positioning System-Insures precise alignment and positioning.

  • Automatic Lifting System-Facilitates smoth material handling.

  • Cutting with Scoring Blade-Delivers high-precision cuts with superior edge quality.

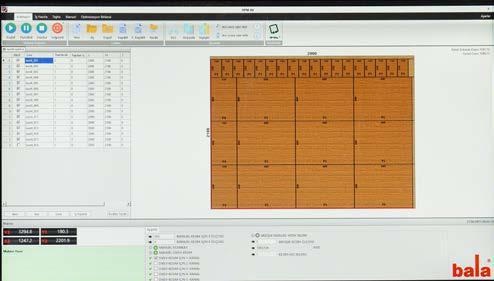

       Automatic Cutting with Cutting Optimization

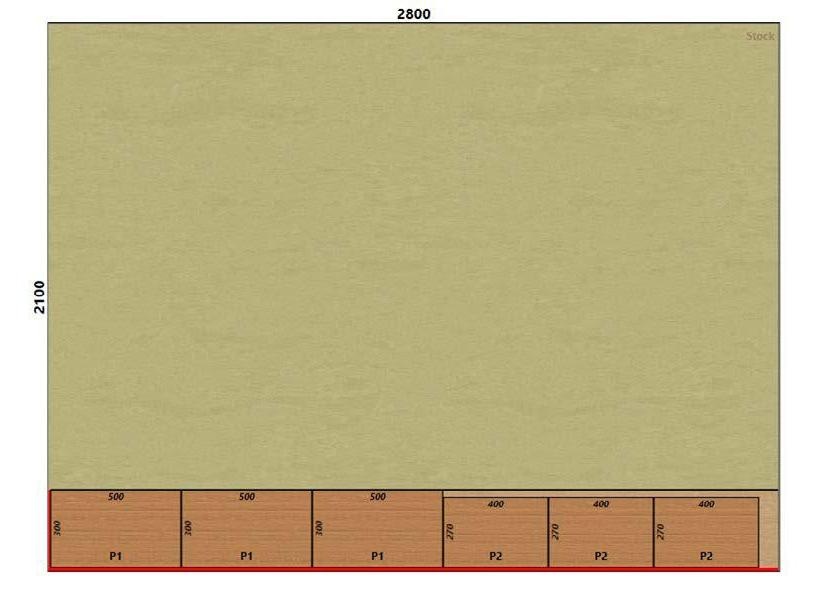

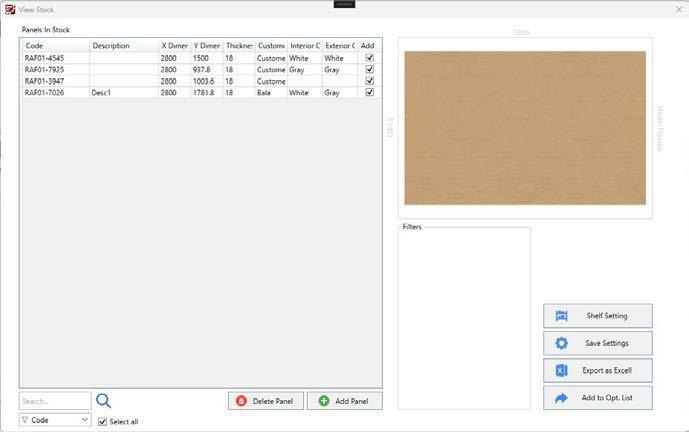

       Stock Management

       Bar Code Printing and Labeling

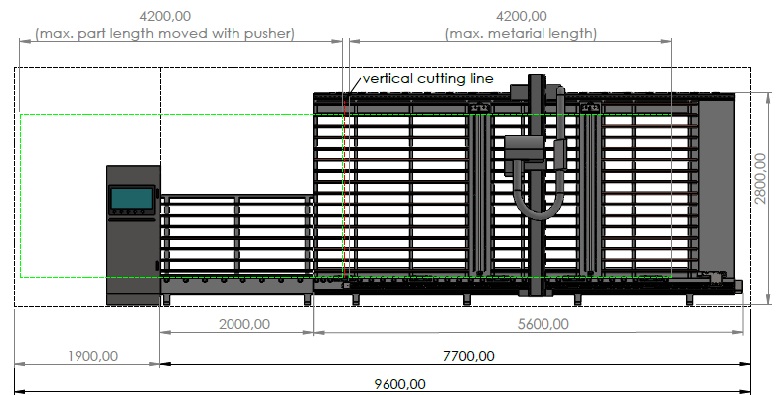

DPM AV 2242 Layout

Standard Equipment

  • Cutting optimization

  • Automatic positioning system

  • Automatic cutting with optimization

  • PC control panel with Bala software for optimized panel cuts

  • Scoring group with circular conical blade, with belt transmission

  • Automatic movable back support, with pneumatic operation

  • Panel clamping & lifting system

  • Mechanical positioners for horizontal cuts

  • Lower panel supports with metal wheels (with absolute parrallelism

  • Safety measurements

  • Circular blade HM

  • Circular blade HM scoring group

Technical Data

  • Motor power: 5.5 HP-4KW

  • Voltage:  Per customer requirements

  • Rotation speed of motor:  2880 r.p.m.

  • Rotation speed of the circular saw blade: 4650 rpm

  • Rotation speed of the blade of the scoring group: 9000 rpm.

  • Max. cutting height 2200 mm

  • Max. cutting length: 4200 mm

  • Max. cutting thickness: 45mm

  • Overall dimensions (working area) (L x W x H) 9600 mm x 2000mm x 3200 mm

  • Total weight 1350: KG
